WTA Series
Mi-T-M

WTA Series

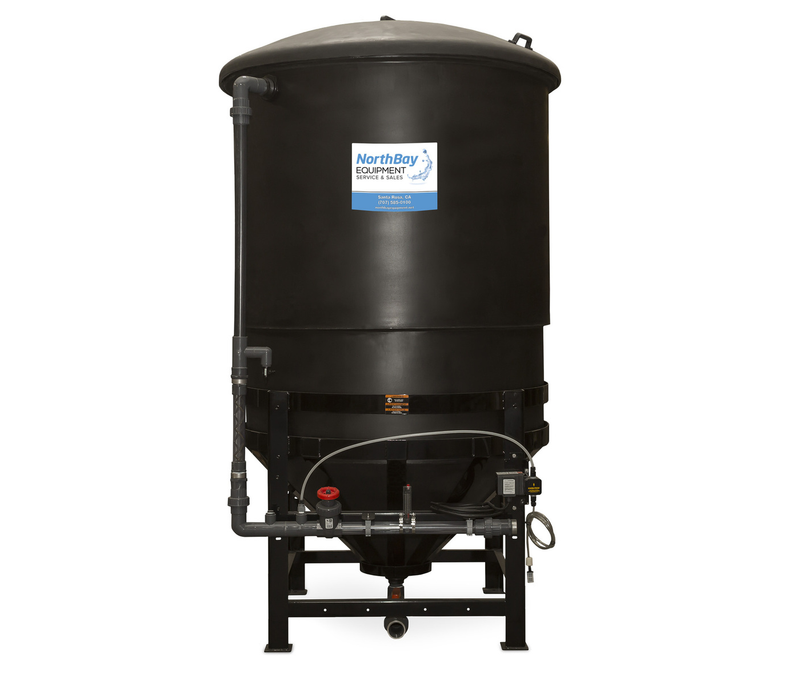

This WTA pretreatment system removes solids before water recycling and offers 300-gallon or 600-gallon tanks, including single-phase and three-phase 300-gallon versions.

Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100

Product Resources

Download Product Sheet PDF
Product Overview Technical Specifications Related Products
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Request pricing Call 707-585-0100
Equipment Details
Product Overview

The WTA Series pretreatment systems can be added to any water treatment system for effective removal of solids prior to recycling. These set-ups offer the choice of 300-gallon or 600-gallon tanks.

Pretreatment Systems – 300-Gallons

WTA-300-0M10
12-0072 - 300-gallon tank with manual dump valve - qty. 1
20-1282A01 - Tank stand - qty. 1

WTA-300CL-0M10 – Single Phase
WTA-300CL-0M30 – Three Phase
12-0072 - 300-gallon tank with manual dump valve - qty. 1
20-1282A01 - Tank stand - qty. 1
3-0460 - Sump pump - qty. 1

WTA-300EXP-0M10 – Single Phase
WTA-300EXP-0M30 – Three Phase
12-0072 - 300-gallon tank with manual dump valve - qty. 1
20-1282A01 - Tank stand - qty. 1
21-0203 - Coalescing main media frame - qty. 2
21-0204 - Coalescing side media frame - qty. 2
3-0321 - Aeration pump, ¾ HP, 3Ø - qty. 1
3-0331 - Aeration pump, ¾ HP, 1Ø - qty. 1
55-0033 - Mazzei venturi injector - qty. 1

WTA-300SA-0M10 – Single Phase
WTA-300SA-0M30 – Three Phase
12-0072 - 300-gallon tank with manual dump valve - qty. 1
20-1282A01 - Tank stand - qty. 1
21-0203 - Coalescing main media frame - qty. 2
21-0204 - Coalescing side media frame - qty. 2
3-0458 - Peristaltic pump - qty. 1
3-0321 - Aeration pump, ¾ HP, 3Ø - qty. 1
3-0331 - Aeration pump, ¾ HP, 1Ø - qty. 1
55-0033 - Mazzei venturi injector - qty. 1

Pretreatment Systems – 600-Gallons

WTA-600-0M11
12-0069 - 600-gallon tank with manual dump valve - qty. 1
20-1287A01 - Tank stand - qty. 1

WTA-600CL-0M11 – Single Phase
WTA-600CL-0M31 – Three Phase
12-0069 - 600-gallon tank with manual dump valve - qty. 1
20-1287A01 - Tank stand - qty. 1
3-0460 - Sump Pump - qty. 1

WTA-600EXP-0M11 – Single Phase
WTA-600EXP-0M31 – Three Phase
12-0069 - 600-gallon tank with manual dump valve - qty. 1
20-1287A01 - Tank stand - qty. 1
21-0203 - Coalescing main media frame - qty. 2
21-0204 - Coalescing side media frame - qty. 2
3-0321 - Aeration pump, ¾ HP, 3Ø - qty. 1
3-0331 - Aeration pump, ¾ HP, 1Ø - qty. 1
55-0033 - Mazzei venturi injector - qty. 1

WTA-600SA-0M11 – Single Phase
WTA-600SA-0M31 – Three Phase
12-0069 - 600-gallon tank with manual dump valve - qty. 1
20-1287A01 - Tank stand - qty. 1
21-0203 - Coalescing main media frame - qty. 2
21-0204 - Coalescing side media frame - qty. 2
3-0458 - Peristaltic pump - qty. 1
3-0321 - Aeration pump, ¾ HP, 3Ø - qty. 1
3-0331 - Aeration pump, ¾ HP, 1Ø - qty. 1
55-0033 - Mazzei venturi injector - qty. 1
