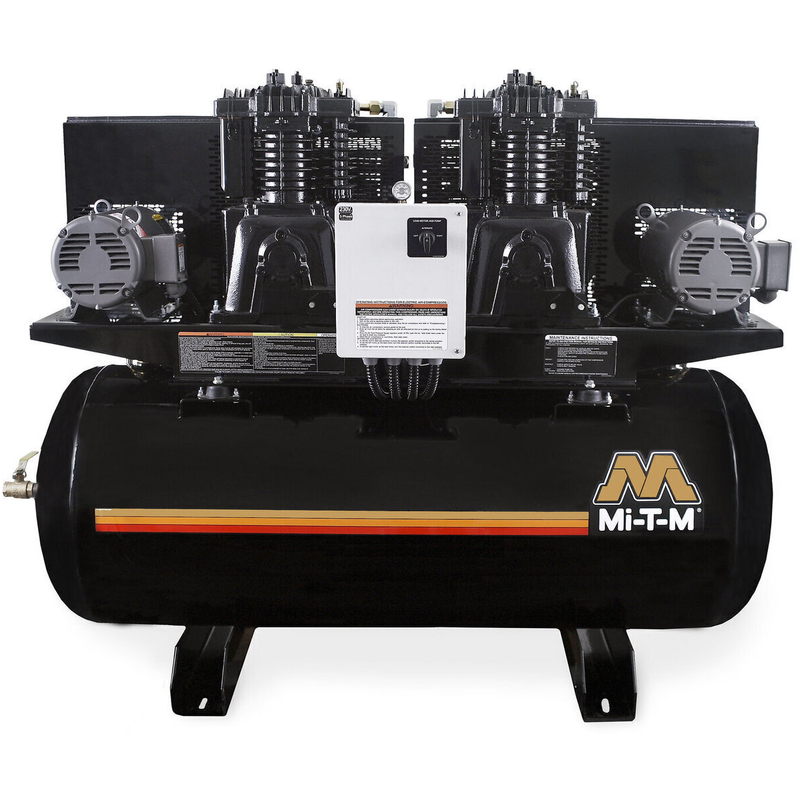

120-Gallon ACD Series Air Compressor

Model ACD-23105-120H

This 120-gallon horizontal ACD Series duplex air compressor, model ACD-23105-120H, is a 5.0 HP unit on 230V single-phase power at 46 amps, rated up to 175 PSI.

Approved for sale in California
Yes
CFM
36.0
PSI
175
Voltage
230 Volt / 1
Original price $12,746.00 - Original price $13,055.00
Original price
$12,933.00
$12,746.00 - $13,055.00
Current price $12,933.00
Commercial equipment pricing. Taxes calculated at checkout.

Freight quote confirmed after checkout.
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

120-Gallon ACD Series Air Compressor

5.0 HP Duplex Horizontal Industrial Air Compressor

Designed for demanding commercial and industrial applications, this 120-gallon duplex air compressor delivers dependable performance for workshops, service bays, maintenance facilities and service trucks.

120-Gallon Tank 5.0 HP Duplex Horizontal Design Up to 175 PSI
Standard Features
  • Cast-iron compressor pumps
  • Splash-lubricated design
  • Stainless-steel discharge hoses
  • Large canister intake filters
  • Oil-level sight indicators
  • Industrial low-RPM motors
  • Magnetic motor starters
  • Thermal-overload protection
  • Powder-coated ASME receiver tank
  • 3/16-inch vibration-reducing base plate
  • Two-piece belt guards
  • Removable installation base plate
  • ASME safety valves
  • Tank pressure gauge
  • Hour meter
  • Large flywheels
  • Intake filters and silencers
  • Tank shut-off valve
  • Three-position alternating control
  • 110–140 PSI and 145–175 PSI controls
Available Models
Model Power Amps Ship/Net Weight
ACD-23105-120H 230V, 1Ø 46.0A 1,013/909 lb.
ACD-20305-120H 200V, 3Ø 32.2A 953/849 lb.
ACD-23305-120H 230V, 3Ø 27.6A 925/821 lb.
ACD-46305-120H 460V, 3Ø 13.8A 925/821 lb.
Factory-Installed Options
Options must be ordered with the compressor and cannot be added later.
IX-0001 — Vibration Isolator Pads:

Reduce vibration and are recommended for service-truck installations.

IX-0006 — Electric Tank Drain:

Automatically drains liquid from the compressor tank.

IX-0032 — Pneumatic Tank Drain:

Automatically drains liquid using a pneumatic system.

IX-0033 — Aftercooler:

Removes up to 65% of discharged-air moisture and lowers air temperature to within 10°F of ambient temperature.

IX-0061, IX-0062 and IX-0063 — Low-Oil Monitors:

Prevent the compressor from starting when the oil level is too low.

Technical Data
Technical Specifications
Voltage
230 Volt / 1
PSI
175
CFM
36.0
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
