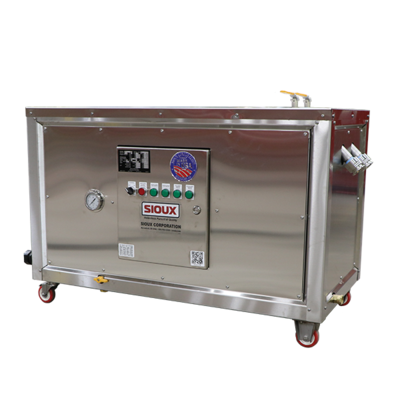

SF3.8E All-Electric Steam-Flo

This all-electric SF3.8E Steam-Flo uses a 38 kW heating element and 3.8 boiler horsepower to produce 133 pounds of steam per hour at up to 15 PSI and 250°F on 480V three-phase power.

Burner Fuel Type
Electric
Maximum Temperature (°F)
250
Outlet Connection
1" MPT
PSI
15
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

• 38 KW Electric Heating Element
• 3.8 Boiler HP
• 133 Lbs./Hour Steam Output for multiple barrels
• 15 PSI Maximum Operating Pressure with adjustable
pressure switch
• 250F maximum outlet temperature
• 480V/3PH/60Hz Operating current 46 amps
• Includes inlet water feeder with flow valve, low
water level switch, high limit pressure switch with
manual reset
• ASME rated pressure relief valve
• Two - 1” MNPT Steam Outlets
• NEMA 4X watertight main electrical enclosure
• Polished stainless-steel enclosure with removable
access panels
• Caster mounted for ease of portability

Technical Data
Technical Specifications
Voltage
480 Volt / 3
PSI
15
Maximum Temperature (°F)
250
Outlet Connection
1" MPT
Burner Fuel Type
Electric
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
