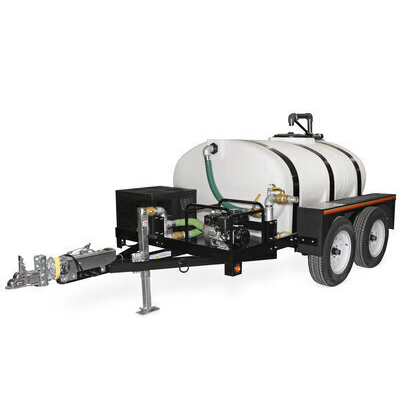

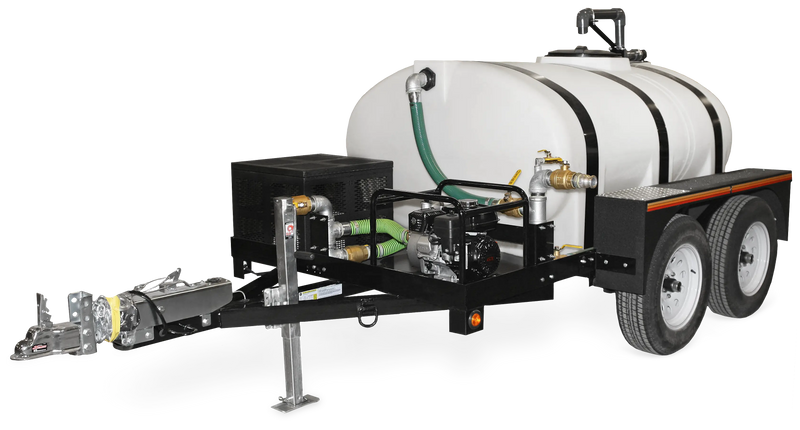

This Mi-T-M water transport trailer carries a 510-gallon polyethylene tank, a 2-inch semi-trash pump, dual rear spray heads, and a 50-foot fire hose on a DOT-approved trailer.
This water trailer is equipped with a 510-gallon water tank and is ideal for dust control and water transportation.
Tank
510-gallon elliptical low profile 3/8-inch thick polyethylene · 16-inch manhole with 4-inch vent and a sump pump
Central Manifold
Easy-to-operate butterfly brass valves
Plumbing
1 1/2-inch fire hose hook-up with 50-foot x 1 1/2-inch hose and fog nozzle · Break-away hydrant fill with 25-foot x 2 1/2-inch hose · Dual rear spray heads · Garden hose connector · Manifold discharge system · Water hammer prevention valve
Trailer
DOT approved · 12-inch under-clearance at axle · 7,000-lb. side-mount crank jack · Dual leaf spring suspension · Rubber mounted sealed lights · Wire storage basket · Two safety chains with snap hooks · (4) ST225-75 15-inch tires
Semi-Trash Pump
2-inch suction and discharge that handles solids up to 3/4-inch diameter · Heavy-duty powder coated wraparound frame · Silicon carbide mechanical seals · Precision molded cast iron impeller and volute for reduced vibration and wear
Displacement/ Engine
196cc Honda GX200 OHV
Pump
2 in. Semi-Trash
Hitch
2 in. Ball
Axle
(2) 3,500 lb. Tandem with Hydraulic Surge Brakes
Bed Frame
5 ft. x 8 ft.
Trailer Weight (Loaded)
5,900 lb.
Net Weight
1580.00 lbs.
Shipping Weight
1580.00 lbs.
Length
164.40 in.
Width
81.60 in.
Height
69.60 in.
