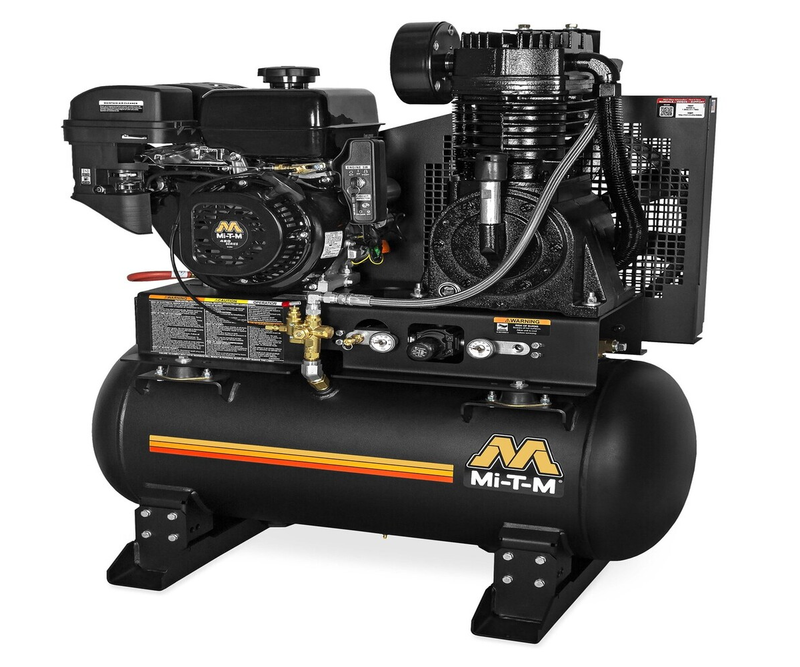

30-Gallon Two Stage Gasoline - Tank Mount - Mi-T-M Engine
Model #ABS-14M-30H | Tank Mount | Mi-T-M Engine
Ideal for commercial construction, industrial and automotive industries, the 30-gallon air compressor is designed to provide high capacity air flow.
Compressor Pump: Cast iron compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Engine: Electric start - battery and cables not included
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · Removable base plate offers flexible installation
Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve
Equipped with 150-PSI maximum rated regulator.
Specifications
-
CFM @ PSI: 29.0 @ 175
-
Displacement/ Engine: 420cc Mi-T-M OHV
-
Tank Size: 30-gallon
-
Engine Idle Control: Pneumatic
Weights & Dimensions
-
Net Weight: 416.00 lbs.
-
Shipping Weight: 480.00 lbs.
-
Length: 38.00 in.
-
Width: 23.00 in.
-
Height: 46.00 in.
