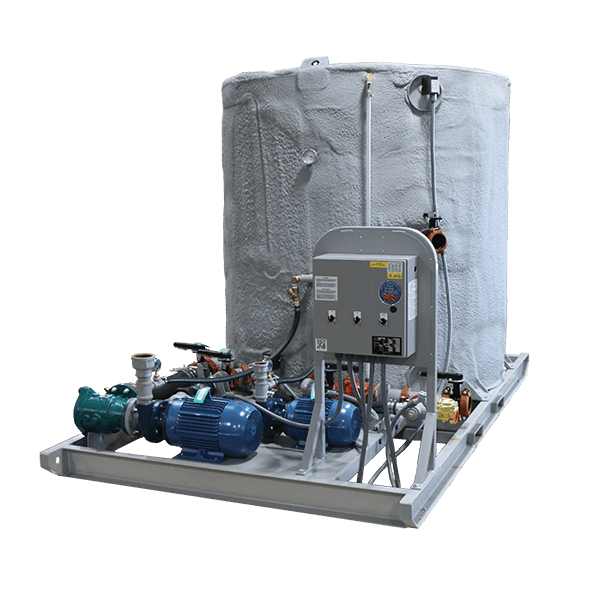

Carbon Steel Tank Skid Packages
Water Heating and Chilling Applications
Carbon Steel Tank
Skid Packages
Need a water tank to use with your water heater or chiller? Sioux manu-
factures 1,000 and 2,500 gallon water tanks. There are two 3” ports on the
1,000 gallon tank and two 4” ports on the 2,500 gallon tank for inlet and
outlet water connections. Standard tank packages include a carbon steel
tank with anode and powder paint finish. Tanks with optional spray foam
insulation are also available.
Quality Built
• 10 or 15-HP motor and centrifugal pump
• NEMA4 watertight electrical enclosure
• Electrical - 208, 230, or 460/3PH/60Hz
• Inlet water suction diffuser before pump
• High & low level switches
• 2” inlet water solenoid valve
• Level sight gauge
• 4” tank vent
• Access hatch
• Forklift accessible skid
• Inlet port and 115-volt power outlet for
optional chemical metering pump
• Option to add an additional 3, 5, or 7.5-HP
motor and pump with inlet water y strainer
