Biological Recycle/Discharge Systems

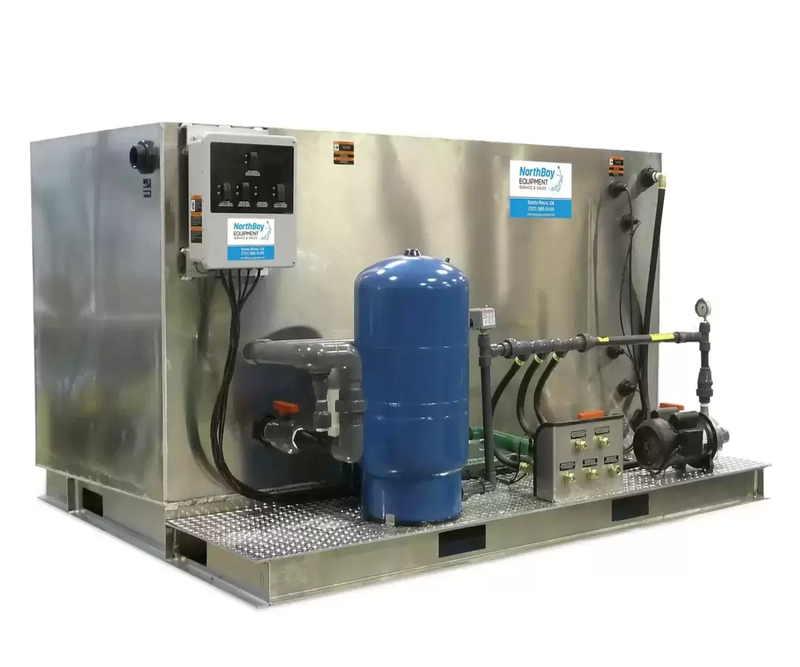

This Mi-T-M BIO Series biological recycle and discharge system treats wastewater with fixed-film bacteria, coalescing media, and a Mazzei venturi air injection system.

Manufacture
Mi-T-M
Voltage
230 Volt / 1, 230 Volt / 3, 208 Volt / 3, 460 Volt / 3
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

The popular Mi-T-M BIO Series System utilizes fixed-film bacteria in conjunction with coalescing media to treat waste water. Oxygen is added to the bacteria in the waste stream by venturi injection system.

Benefits:Low maintenance · Low operating costs · Simple equipment operation

Components:ETL listed NEMA-4 rated corrosion-proof control panel for safe and reliable operation · Hose connectors are clearly marked and designed for easy accessibility and quick installation · Mazzei® venturi air injection system, 55-0126, sustains beneficial aerobic microbes while preventing bacteria from turning odorous and anaerobic · Aeration pump, 3-0397 · Transfer pump, 3-0399 · Pressure manifold set-up is standard on BIO-20R-0M11 and BIO-20R-1M11 · Durable "True Union" valve · Slope bottom tanks are standard

Recommended Applications:
· Rental Yards
· Golf Courses
· Heavy Equipment Dealers
· Trucking Facilities
· Military Bases
· Truck Rental Fleets
· Diesel Repair Facilities
· Forklift Washing Operations
· Aircraft Maintenance and Restoration
· Shipyards
· Municipalities/State DOTs
· Oil Fields
· Engine Rebuilders and Manufacturers

Models Available:
Discharge Systems(950 lb. ship weight)
BIO-20D-0M10- 230V, 1Ø, 15.0A; Marine Aluminum
BIO-20D-1M10- 230V, 1Ø, 15.0A; Stainless-Steel
BIO-20D-0M30- 230V, 3Ø, 10.0A; Marine Aluminum
BIO-20D-1M30- 230V, 3Ø, 10.0A; Stainless-Steel

Recycle Systems(1,092 lb. ship weight)
BIO-20R-0M10- 230V, 1Ø, 25.0A; Marine Aluminum
BIO-20R-1M10- 230V, 1Ø, 25.0A; Stainless-Steel
BIO-20R-0M30- 230V, 3Ø, 15.0A; Marine Aluminum
BIO-20R-1M30- 230V, 3Ø, 15.0A; Stainless-Steel
BIO-20R-0M11- 230V, 1Ø, 25.0A; Marine Aluminum
BIO-20R-1M11- 230V, 1Ø, 25.0A; Stainless-Steel
BIO-20R-0M31- 230V, 3Ø, 15.0A; Marine Aluminum
BIO-20R-1M31- 230V, 3Ø, 15.0A; Stainless-Steel

230/208/460V 3Ø available on all models as options

The Importance of a Proper Pit System:
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.

Consult with North Bay Equipment to determine the pit system configuration that works best for your application.


Technical Data
Technical Specifications
Voltage
230 Volt / 1, 230 Volt / 3, 208 Volt / 3, 460 Volt / 3
Manufacture
Mi-T-M
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
