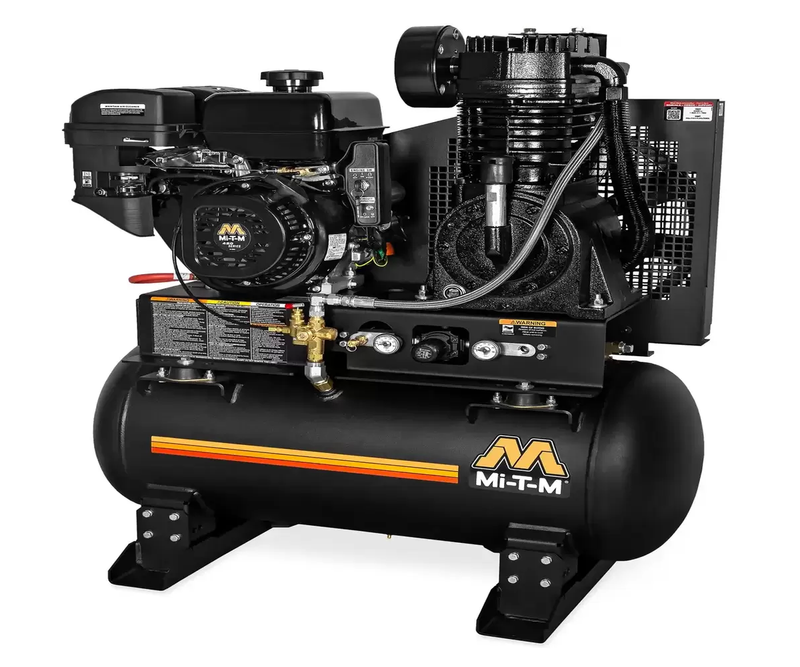

80-Gallon Two Stage Gasoline - Tank Mount - Mi-T-M Engine

Model ABS-14M-80H

This tank-mount Mi-T-M two-stage gasoline air compressor, model ABS-14M-80H, delivers 29.0 CFM at 175 PSI from an 80-gallon tank with a 420cc Mi-T-M OHV engine and electric start.

CFM
29.0
Manufacture
Mi-T-M
PSI
175
Wire Braid
Stainless steel
Original price $6,015.00
Original price $6,015.00 - Original price $6,015.00
Original price $6,015.00
Current price $4,812.00
$4,812.00 - $4,812.00
Current price $4,812.00
Commercial equipment pricing. Taxes calculated at checkout.

Freight quote confirmed after checkout.
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

Model #ABS-14M-80H | Tank Mount | Mi-T-M Engine

Ideal for commercial construction, industrial and automotive industries, the 80-gallon air compressor is designed to provide high capacity air flow.

Compressor Pump:Cast iron compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine:Electric start - battery and cables not included

Frame:Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · Removable base plate offers flexible installation

Components:Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve

Equipped with 150-PSI maximum rated regulator.

Specifications

  • CFM @ PSI: 29.0 @ 175

  • Displacement/ Engine: 420cc Mi-T-M OHV

  • Tank Size: 80-gallon

  • Engine Idle Control: Pneumatic

Weights & Dimensions

  • Net Weight: 496.00 lbs.

  • Shipping Weight: 560.00 lbs.

  • Length: 52.00 in.

  • Width: 26.50 in.

  • Height: 53.00 in.


Technical Data
Technical Specifications
Wire Braid
Stainless steel
PSI
175
Manufacture
Mi-T-M
CFM
29.0
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
