30-Gallon Two Stage Gasoline - Stationary - Electric Start

Model AM2-SM09-30ME

This stationary Mi-T-M two-stage gasoline air compressor, model AM2-SM09-30ME, uses a 30-gallon tank and electric start to deliver 17.2 CFM at 175 PSI with a cast iron splash-lubricated pump.

CFM
17.2
Manufacture
Mi-T-M
PSI
175
Wire Braid
Stainless steel
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

Featuring a large capacity ASME tank, these air compressors are designed to perform. Mount one in a service truck and take it to the most demanding jobsite.

Model #AM2-SM09-30ME | Stationary | Mi-T-M Engine w/ Electric Start

Compressor Pump:Cast iron compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame:Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard

Components:Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start - battery, box and cables not included.

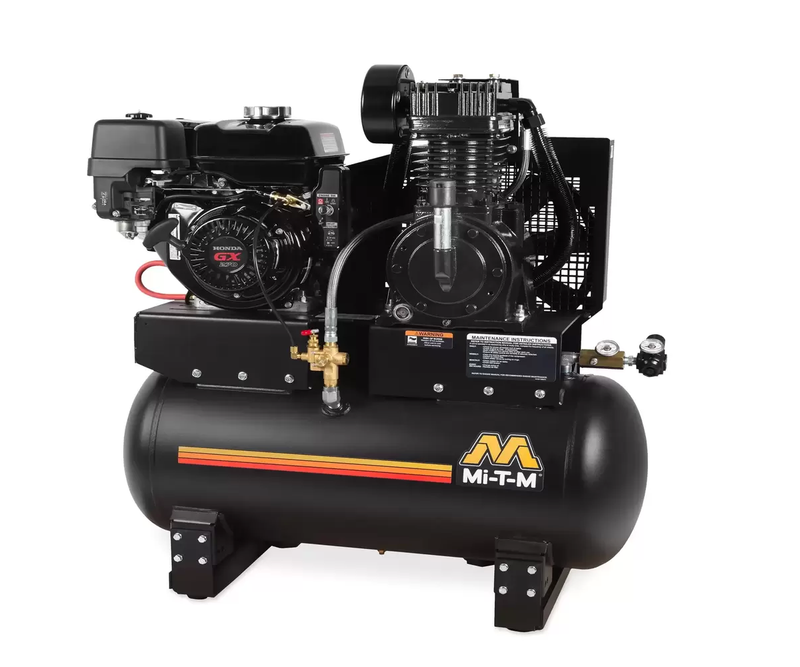

* Picture shown is with a Honda engine

Specifications

  • CFM @ PSI: 17.2 @ 175

  • Displacement/ Engine: 300cc Mi-T-M OHV

  • Tank Size: 30-gallon

  • Engine Idle Control: Cable Throttle

Weights & Dimensions

  • Net Weight: 372.00 lbs.

  • Shipping Weight: 442.00 lbs.

  • Length: 40.50 in.

  • Width: 17.50 in.

  • Height: 44.50 in.


Technical Data
Technical Specifications
Wire Braid
Stainless steel
PSI
175
Manufacture
Mi-T-M
CFM
17.2
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
