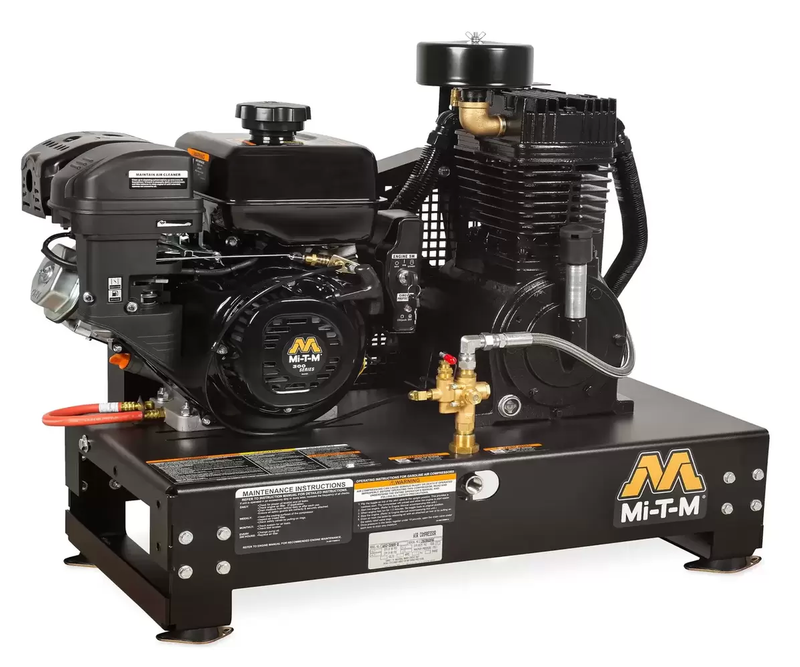

30-Gallon Two Stage Gasoline - Base Mount

Model AM2-SM09-B

This base-mount Mi-T-M two-stage gasoline air compressor, model AM2-SM09-B, delivers 17.2 CFM at 175 PSI with a 300cc Mi-T-M OHV engine and a cast iron splash-lubricated pump.

CFM
17.2
Manufacture
Mi-T-M
PSI
175
Wire Braid
Stainless steel
Original price $3,254.00
Original price $3,254.00 - Original price $3,254.00
Original price $3,254.00
Current price $2,603.20
$2,603.20 - $2,603.20
Current price $2,603.20
Commercial equipment pricing. Taxes calculated at checkout.

Freight quote confirmed after checkout.
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

Featuring a large capacity ASME tank, these air compressors are designed to perform. Mount one in a service truck and take it to the most demanding jobsite.

Model #AM2-SM09-B

Compressor Pump:Cast iron compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame:Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard

Components:Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.

Specifications

  • CFM @ PSI: 17.2 @ 175

  • Displacement/ Engine: 300cc Mi-T-M OHV

  • Tank Size: Base-Mount

  • Engine Idle Control: Cable Throttle

Weights & Dimensions

  • Net Weight: 302.00 lbs.

  • Shipping Weight: 372.00 lbs.

  • Length: 36.50 in.

  • Width: 21.00 in.

  • Height: 32.00 in.


Technical Data
Technical Specifications
Wire Braid
Stainless steel
PSI
175
Manufacture
Mi-T-M
CFM
17.2
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
