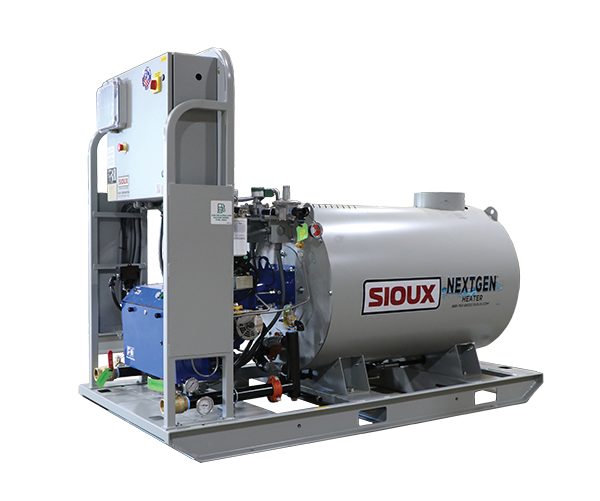

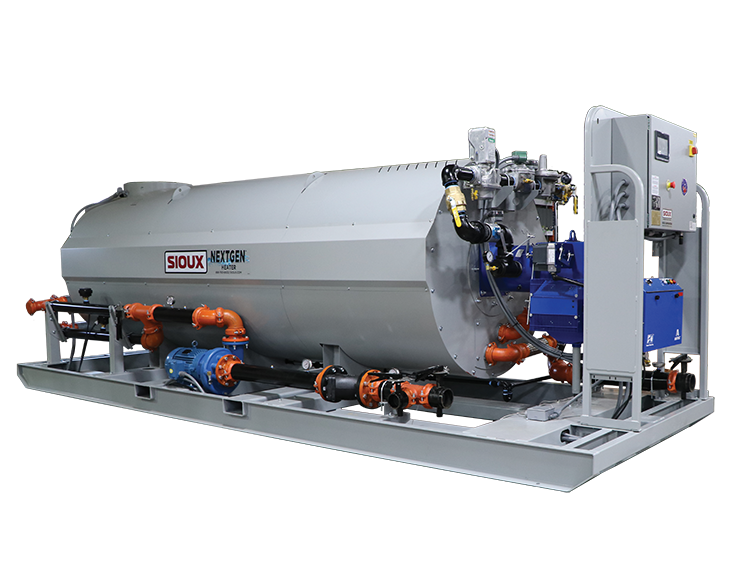

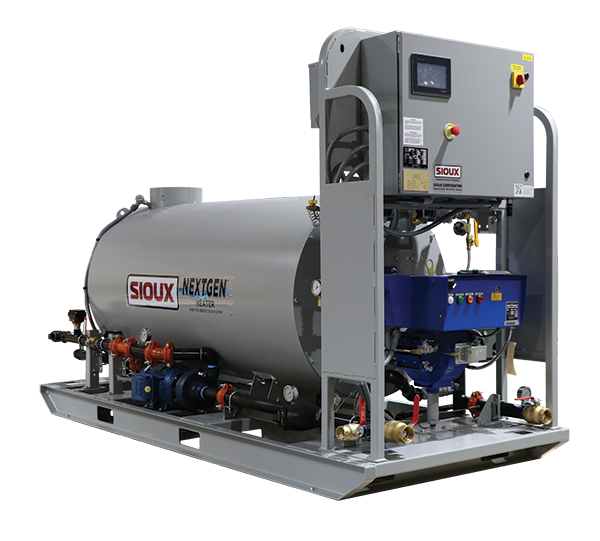

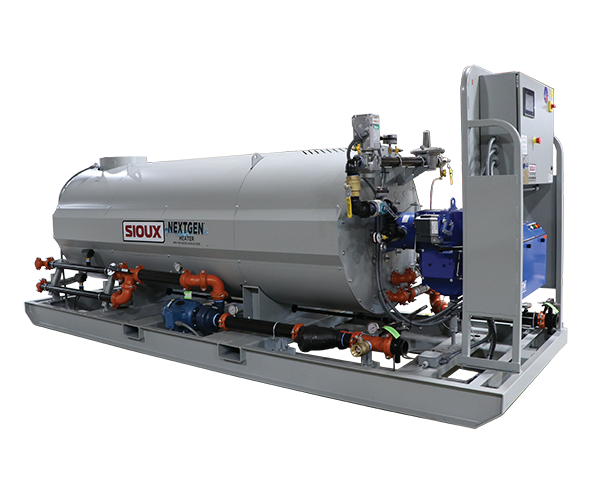

WH Series Industrial Water Heaters

This Sioux WH Series industrial water heater is a horizontal heat exchanger for continuous hot water, with 1 to 5 million BTU/hr output, 90%+ efficiency, and diesel, LP, natural gas, or combination burners.

Burner Fuel Type
Diesel, Propane (LP), Natural Gas (NG), Combination
Manufacture
Sioux
Voltage
230 Volt / 1, 230 Volt / 3, 460 Volt / 3, 575 Volt / 3
Water Capatibility
Hot Water
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

The Next Generation of Water Heaters from Sioux

Sioux water heaters are used worldwide in a variety of industrial applications. Sioux’s NextGenTM water heaters come with advanced features to make the process of heating water safe, quick, and efficient. These horizontal heat exchanger units provide a continuous supply of hot water within minutes of startup with an efficient and simple design.

Performance

  • BTU/Hr heat output ratings of 1 to 5 million and 90%+ efficiency
  • Primary electricals are 230/1Ph/60Hz, 230V/3Ph/60Hz, 460/3Ph/60Hz, and 575/3Ph/60Hz.
  • Available with Diesel, LP, Natural Gas or Combination burners.
  • Variable Frequency Drive (VFD) standard on 1.7, 3.0, & 5.0 models allows the heater to achieve higher outlet temperature and reduces electrical consumption during idle times.

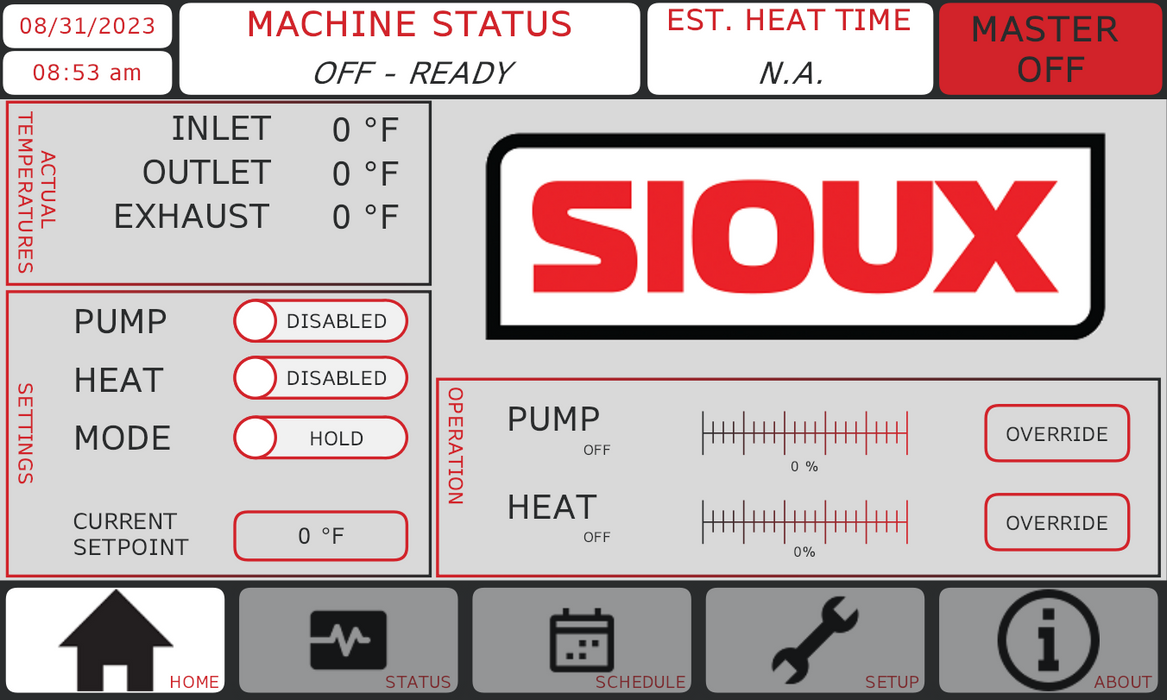

Advanced PLC Control

  • Intuitive Touch screen interface
  • Online connectivity with Sioux SentinelTM or Sentinel ProTM to monitor and operate from remote locations.
  • Automatic scale monitoring and notification
  • Burner and thermocouple monitoring (including fault codes) and maintenance alerts
  • Set operation schedule and desired tank temperature
  • Integrate operation and monitoring of Sioux Tank Skid package

Safety

  • Standard safety devices include emergency stop switch; exhaust temperature limit switch; inner and outer coil flow switches; and temperature limits.

Industrial Construction

  • Powder coated heavy-duty skid and 4-way forklift access.
  • Optimized skid dimensions and weight.
  • High flow cast iron pump for long life.
  • Groove fittings for easy maintenance of common service items
  • Vacuum gauges for inlet y-strainer will indicate when clean out is required
  • Condensation drains plumbed to a single point on the skid edge

Flexibility

  • Carbon or stainless steel heat exchangers.
  • Available Lo/Hi/Lo and Modulating burners allow higher tank temperatures.
  • Alternate voltages available.
  • Custom options available.

Certification & Standards

  • Built to ASME Code Section IV and registered with the National Board of Boiler and Pressure Vessel Inspectors.
  • Third-party certified to one or more of the following standards - UL726/CSA B140.7:22 (Diesel) or ANSI/CAN/UL 795 (Gas).
  • Canadian Registration Number (CRN).
  • Electrical panel meets UL-508a and CSA C22.2 #14.
  • Meets the National Electric Code (NEC), the Canadian Electric Code (CEC), and complies with OSHA Regulation 1910.303(a)
  • ISO 9001 Quality management system
Technical Data
Technical Specifications
Voltage
230 Volt / 1, 230 Volt / 3, 460 Volt / 3, 575 Volt / 3
Manufacture
Sioux
Burner Fuel Type
Diesel, Propane (LP), Natural Gas (NG), Combination
Water Capatibility
Hot Water
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
