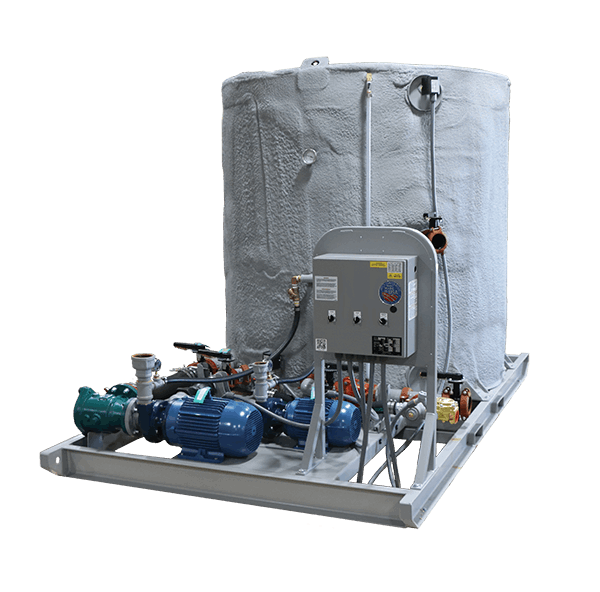

Carbon Steel Tank Skid Packages

Sioux carbon steel tank skid packages are 1,000- or 2,500-gallon tanks with anode and powder paint, a 10 or 15 HP centrifugal pump, and 208, 230, or 460V three-phase power.

Inlet Connection
3", 4", 2"
Manufacture
Sioux
Outlet Connection
3", 4"
Voltage
208 Volt / 3, 230 Volt / 3, 460 Volt / 3
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

Water Heating and Chilling Applications

Carbon Steel Tank
Skid Packages
Need a water tank to use with your water heater or chiller? Sioux manu-
factures 1,000 and 2,500 gallon water tanks. There are two 3” ports on the
1,000 gallon tank and two 4” ports on the 2,500 gallon tank for inlet and
outlet water connections. Standard tank packages include a carbon steel
tank with anode and powder paint finish. Tanks with optional spray foam
insulation are also available.

Quality Built
• 10 or 15-HP motor and centrifugal pump
• NEMA4 watertight electrical enclosure
• Electrical - 208, 230, or 460/3PH/60Hz
• Inlet water suction diffuser before pump
• High & low level switches
• 2” inlet water solenoid valve
• Level sight gauge
• 4” tank vent
• Access hatch
• Forklift accessible skid
• Inlet port and 115-volt power outlet for
optional chemical metering pump
• Option to add an additional 3, 5, or 7.5-HP
motor and pump with inlet water y strainer

Technical Data
Technical Specifications
Voltage
208 Volt / 3, 230 Volt / 3, 460 Volt / 3
Manufacture
Sioux
Inlet Connection
3", 4", 2"
Outlet Connection
3", 4"
Water Capatibility
Hot Water, Cold Water
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
