Mi-T-M Gasoline Air/Gen/Welder Combinations

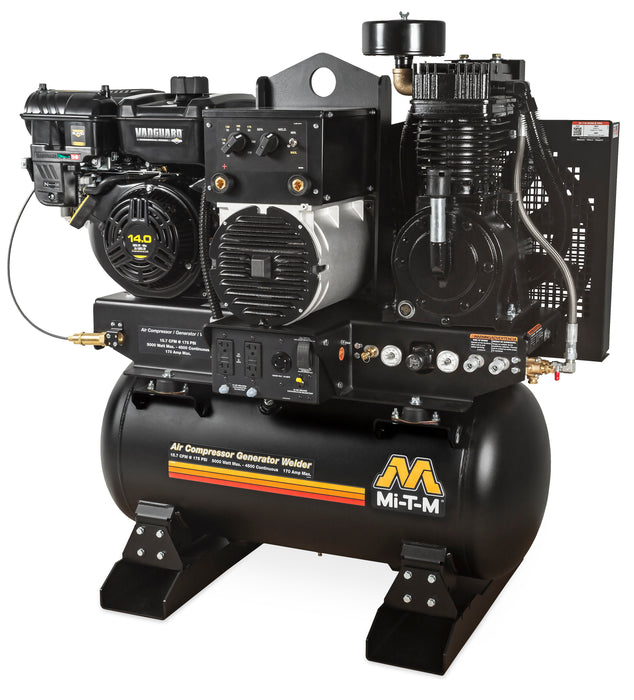

Two Stage Gasoline 30-Gallon - AGW-SV14-30M (Shown)
This AGW Series combines an air compressor, generator and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.
Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder: Amperage selection switch, 170A or 220A maximum
Frame: Powder coated ASME receiver tank · Powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel
AGW Series Operation
Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle
Specifications
-
Displacement/ Engine: 408cc Vanguard OHV with electric start - battery and battery cables not included
-
Rated Speed: 3600 RPM
-
CFM @ 90 PSI 16.4
-
CFM @ 175 PSI* 15.7
-
Tank Size 30-gallon
-
Max. AC Output 5000 watts
-
Rated AC Output 4500 watts
-
Alternator Wattage: Cont. On-Load @ 90 PSI 3000 watts
-
Alternator Wattage: Cont. On-Load @ 175 PSI 2500 watts
-
Frequency/Voltage 60Hz/120V/240V
-
Max. Amps (120V/240V) 41.5/20.8 Off-Load
-
Cont. Amps (120V/240V) 37.5/18.8 Off-Load
-
Receptacles (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock
-
Duty Cycle (10 Min. Run Time) 150A @ 100%
-
DC Voltage 50-170A Working Range
-
Fuel Tank 1.53-gallon
Weights & Dimensions
-
Net Weight 605.00 lbs.
-
Shipping Weight 670.00 lbs.
-
Length 46.00 in.
-
Width 22.00 in.
-
Height 47.00 in.
