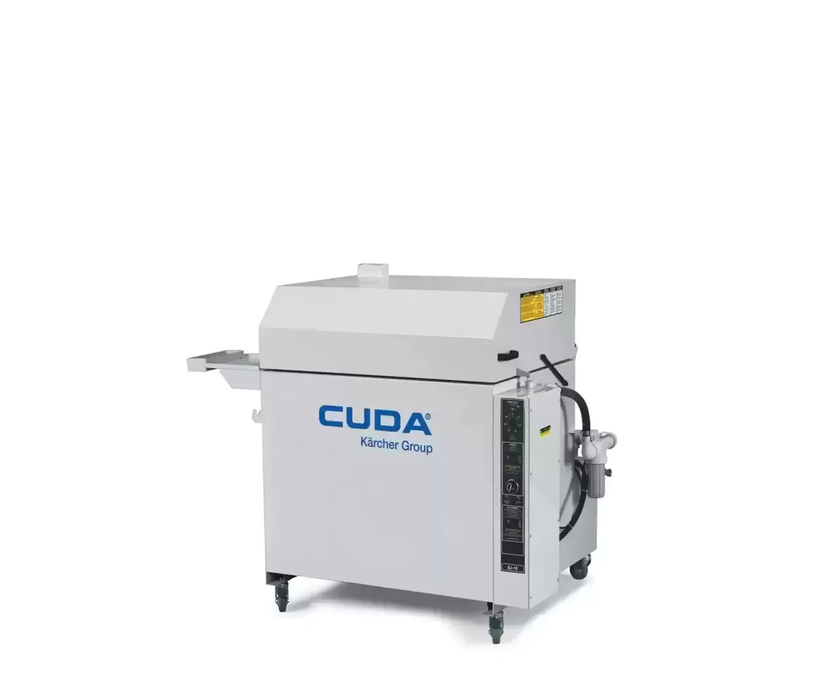

SJ-15 Top-Load Automatic Aqueous Parts Washer

Model SJ-15

This Cuda SJ-15 top-load automatic aqueous parts washer uses a 3 HP pump at 37 GPM and 30 PSI, a 32-by-21-inch basket, a 350-pound capacity, and a 90-gallon sump.

Manufacture
Cuda
Voltage
230 Volt / 1, 208 Volt / 1, 230 Volt / 3, 208 Volt / 3, 460 Volt / 3, 575 Volt / 3
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

The newest addition to the Cuda top load line-up, the SJ-15 uses a patented spray wash technology which eliminates the need for a drive motor, gears and pulleys. Using a water-propelled spray arm with 23 nozzles that spin around a stationary parts basket, parts are hit from every angle while being cleaned. It has a 350-lb. load capacity, and a basket dimension of 32" x 21", 90 gallon sump capacity, 3 HP pump motor delivering 37 GPM @ 30 PSI.

Aqueous parts washers clean faster and better without using harmful solvents! Cuda automatic parts washers provide a safe and efficient solution to cleaning parts because they don't use harmful cleaning solvents to clean. Our automatic parts washers also provide a time-saving, easy parts cleaning solution for your staff allowing them to simultaneously clean parts while performing other tasks.

Working Height: 17.5"
Basket Dimensions 32" x 21"
Load Capacity 350 lbs.
Number of Spray Nozzles 23
Pump Motor 3HP - Vertical - Seal-less
Sump Capacity 90 gal
Pump Capacity 50 GPM - 45 PSI
Voltage / Phase: 230V / 1Ph
208V / 1Ph
230V / 3Ph
208V / 3Ph
460V / 3Ph
575V / 3Ph
Amperage: 38 - 230V (1Ph)
42 - 208V (1Ph)
23 - 230V (3Ph)
25 - 208V (3Ph)
11 - 460V (3Ph)
9 - 575V (3Ph)
Machine Dimensions L x W x H: 51"L x 48"W x 49"H
Shipping Dimensions L x W x H: 73"L x 60"W x 60"H


Technical Data
Technical Specifications
Voltage
230 Volt / 1, 208 Volt / 1, 230 Volt / 3, 208 Volt / 3, 460 Volt / 3, 575 Volt / 3
Manufacture
Cuda
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
