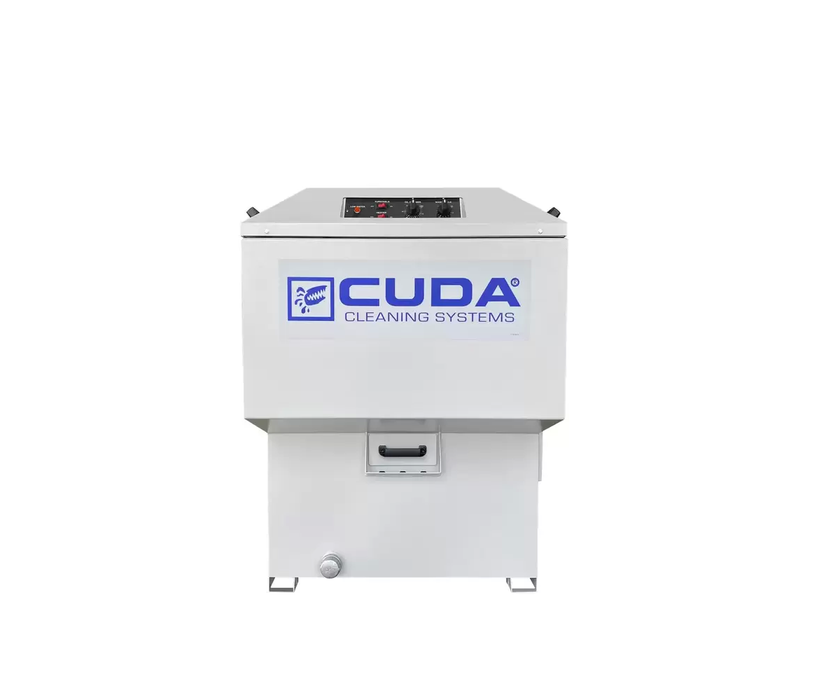

2412 Top-Load Automatic Aqueous Parts Washer

Model 2412

This Cuda 2412 top-load automatic aqueous parts washer is 35 inches wide, with a 250-pound load capacity, a 24-inch turntable, and a 1/2 HP pump.

Flow Rate / GPM
20.0
Manufacture
Cuda
PSI
22
Voltage
115 Volt / 1, 230 Volt / 1, 208 Volt / 1
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

A robust starter machine. Cuda's 2412 series of parts washers is an attractive entry-level top-load aqueous parts washer. At only 35 inches wide, the Cuda 2412 Series parts washer has a 250-lb. load capacity, and a 24 inch turntable diameter. While boasting Cuda Series durability, it has a 1/2 HP mechanical seal with flush tube style pump and an upper drive arm that rotates the turntable. The 115V models make the 2412 especially versatile for use anywhere in the shop.

The 2412 top-load parts washer is ideal for replacing sink on drum solvent tanks, small engine repair, and general light duty auto repair.

Aqueous parts washers clean faster and better without using harmful solvents! Cuda automatic parts washers provide a safe and efficient solution to cleaning parts because they don't use harmful cleaning solvents to clean. Our automatic parts washers also provide a time-saving, easy parts cleaning solution for your staff allowing them to simultaneously clean parts while performing other tasks.

Working Height: 12"
Turntable Diameter: 24"
Turntable Load Capacity: 250 lbs
Number of Spray Nozzles: 8
Pump Motor: .5 HP - Close Coupled Sealed
Sump Capacity: 25 gal
Heater: 1.8 kW (115V), 4.5 kW (208V & 230V)
Pump Capacity: 20 GPM - 22 PSI
Voltage / Phase: 115V / 1Ph
230V / 1Ph
208V / 1Ph
Amperage: 15 - 115V (1Ph)
24 - 230V (1Ph)
26 - 208V (1Ph)
Machine Dimensions L x W x H: 41"L x 35"W x 45"H
Shipping Dimensions L x W x H: 55"L x 48"W x 58"H

Technical Data
Technical Specifications
Voltage
115 Volt / 1, 230 Volt / 1, 208 Volt / 1
PSI
22
Manufacture
Cuda
Flow Rate / GPM
20.0
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
