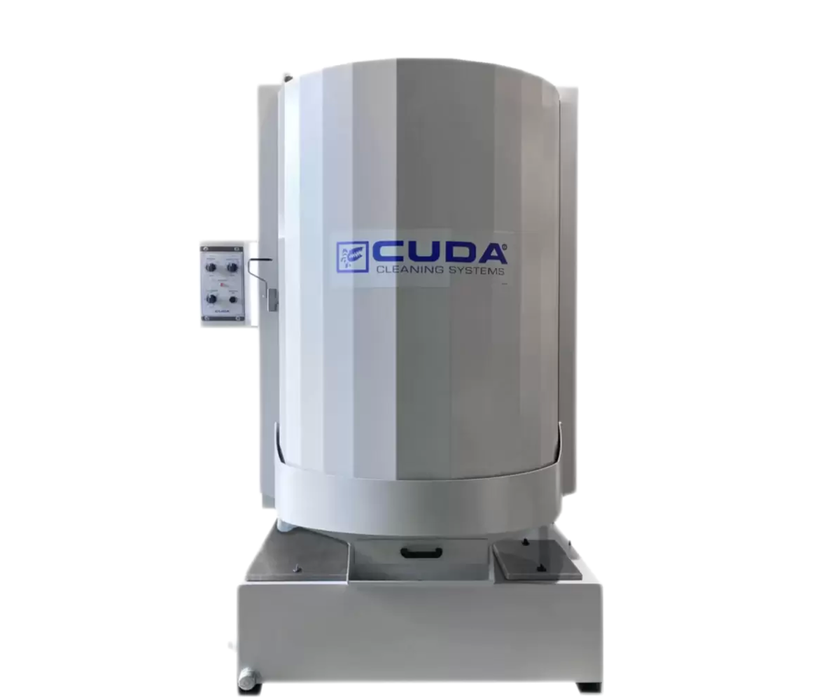

3648 Front-Load Automatic Aqueous Parts Washer

Model 3648

This Cuda 3648 front-load automatic aqueous parts washer has a 36-inch turntable, a 48-inch working height, a 2,500-pound capacity, a 113-gallon sump, and a 7.5 HP pump at 150 GPM and 50 PSI.

Flow Rate / GPM
150
Manufacture
Cuda
Maximum Temperature (°F)
150-180
PSI
50
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

Simply immaculate a yard at a time. The Cuda 3648 features a turntable diameter of 36-inches, working height of 48-inches, and load capacity of 2500 lbs. The 3648 Series is equipped with a 7.5 HP vertical seal-less pump producing 150 GPM at 50 PSI, and has a 113-gallon sump capacity. It also includes upgraded features such as a more durable control panel, easier to replace handle, stainless steel sump covers, and external plumbing making it the easiest to maintain Cuda yet!

The Cuda 3648 parts washer is ideal for large OTR diesel repair shops, large implement dealers, construction equipment repair, and engine rebuilders.

Aqueous parts washers clean faster and better without using harmful solvents! Cuda automatic parts washers provide a safe and efficient solution to cleaning parts because they don't use harmful cleaning solvents to clean. Our automatic parts washers also provide a time-saving, easy parts cleaning solution for your staff allowing them to simultaneously clean parts while performing other tasks.

Working Height: 48"
Turntable Diameter: 36"
Turntable Load Capacity: 2500 lbs
determined with even weight distribution.
Number of Spray Nozzles: 21
Pump Motor: 7.5 HP - Vertical - Seal-less
Pump Capacity: 150 GPM - 50 PSI
Sump Capacity: 113 gal
Heaters: (2) 9 kW
Operating Temperature: 150° - 180°
Voltage / Phase: 230V / 3Ph
208V / 3Ph
460V / 3Ph
575V / 3Ph
Amperage: 58 - 230V (3Ph)
64 - 208V (3Ph)
32 - 460V (3Ph)
28 - 575V (3Ph)
Machine Dimensions: L x W x H 57"L x 49"W x 94"H
Shipping Dimensions: L x W x H 63"L x 76"W x 100"H


Technical Data
Technical Specifications
Voltage
230 Volt / 3, 208 Volt / 3, 460 Volt / 3, 575 Volt / 3
PSI
50
Maximum Temperature (°F)
150-180
Manufacture
Cuda
Flow Rate / GPM
150
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
