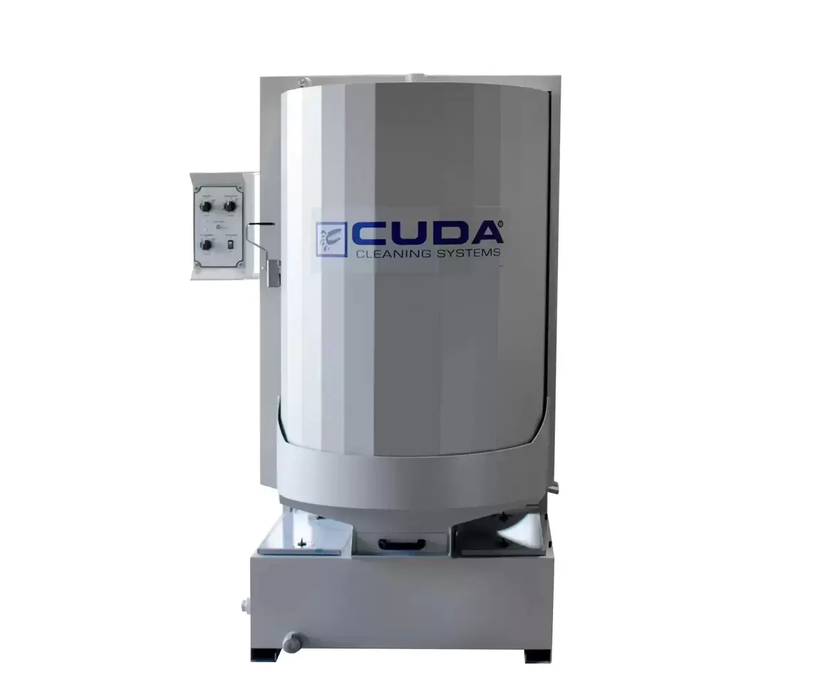

2840 Front-Load Automatic Aqueous Parts Washer

Model 2840

This Cuda 2840 front-load automatic aqueous parts washer has a 28-inch turntable, a 40-inch working height, a 1,000-pound capacity, and a 3 HP seal-less pump producing 50 GPM at 45 PSI.

Flow Rate / GPM
50
Manufacture
Cuda
Maximum Temperature (°F)
150-180
PSI
45
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

A step up in compact parts washing capability. The Cuda 2840 is the next step up in the compact front-load automatic parts washer models. The 2840 features a turntable diameter of 28-inches, working height of 40-inches, and load capacity of 1000 lbs. The 2840 Series is equipped with a 3 HP vertical seal-less pump producing 50 GPM at 45 PSI.

The Cuda 2840 is ideal for larger auto dealers and repair shops, higher volume transmission and diesel repair shops, and smaller loader tractor implement dealers.

Aqueous parts washers clean faster and better without using harmful solvents! Cuda automatic parts washers provide a safe and efficient solution to cleaning parts because they don't use harmful cleaning solvents to clean. Our automatic parts washers also provide a time-saving, easy parts cleaning solution for your staff allowing them to simultaneously clean parts while performing other tasks.

Working Height: 40"
Turntable Diameter: 28"
Turntable Load Capacity: 1000 lbs
determined with even weight distribution.
Number of Nozzles: 12
Pump Motor: 3 HP - Vertical - Seal-less
Pump Capacity: 50 GPM - 45 PSI
Heater: 6 kW
Operating Temperature: 150° - 180°
Voltage / Phase: 230V / 1Ph, 3Ph
208V / 1Ph, 3Ph
460V / 3Ph
575V / 3Ph
Amperage: 38 - 230V (1Ph)
42 - 208V (1Ph)
23 - 230V (3Ph)
25 - 208V (3Ph)
11 - 460V (3Ph)
9 - 575V (3Ph)
Machine Dimensions: L x W x H 51"L x 50"W x 80"H
Shipping Dimensions: L x W x H 66"L x 57"W x 95"H


Technical Data
Technical Specifications
Voltage
230 Volt / 1, 230 Volt / 3, 208 Volt / 1, 208 Volt / 3, 460 Volt / 3, 575 Volt / 3
PSI
45
Maximum Temperature (°F)
150-180
Manufacture
Cuda
Flow Rate / GPM
50
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
