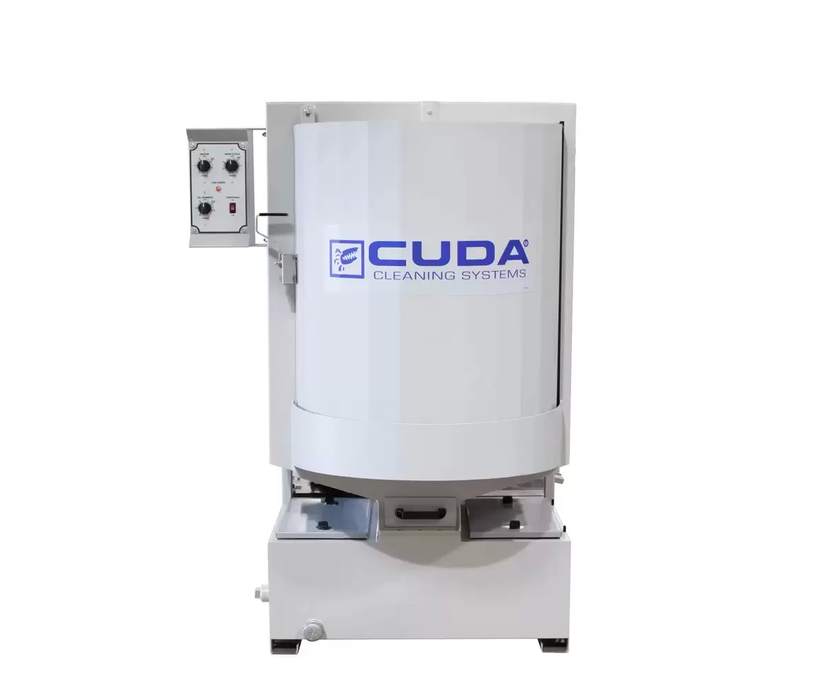

2530 Front-Load Automatic Aqueous Parts Washer

Model 2530

This Cuda 2530 front-load automatic aqueous parts washer has a 25-inch turntable, a 30-inch working height, a 500-pound capacity, and a 3 HP seal-less pump producing 50 GPM at 45 PSI.

Flow Rate / GPM
50
Manufacture
Cuda
Maximum Temperature (°F)
150-180
PSI
45
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

A mighty mini that is practically effortless. The Cuda 2530 is the smallest in the front-load automatic parts washer models and is more compact than many solvent tanks. Featuring a turntable diameter of 25-inches, working height of 30-inches, and load capacity of 500 lbs. The 2530 Series is equipped with a 3 HP vertical seal-less pump producing 50 GPM at 45 PSI.

The Cuda 2530 front load aqueous parts washer is ideal for auto dealers and repair facilities with less than 7 techs, low volume transmission and diesel repair, and many other applications from amusement parts to ski areas.

Aqueous parts washers clean faster and better without using harmful solvents! Cuda automatic parts washers provide a safe and efficient solution to cleaning parts because they don't use harmful cleaning solvents to clean. Our automatic parts washers also provide a time-saving, easy parts cleaning solution for your staff allowing them to simultaneously clean parts while performing other tasks.

Working Height: 30
Turntable Diameter: 25
Turntable Load Capacity: 500 lbs
Number of Spray Nozzles: 13
Pump Motor: 3 HP - Vertical - Seal-less
Pump Capicity: 50 GPM- 45 PSI
Heater: 6 kW
Operating Temperature: 150° - 180°
Voltage / Phase: 230V / 1Ph, 3Ph
208V / 1Ph, 3Ph
460V / 3Ph
575V / 3Ph
Amperage: 38 - 230V (1Ph)
42 - 208V (1Ph)
23 - 230V (3Ph)
25 - 208V (3Ph)
11 - 460V (3Ph)
9 - 575V (3Ph)
Machine Dimensions: L x W x H 48"L x 45"W x 74"H
Shipping Dimensions: L x W x H 66"L x 57"W x 79"H


Technical Data
Technical Specifications
Voltage
230 Volt / 1, 230 Volt / 3, 208 Volt / 1, 208 Volt / 3, 460 Volt / 3, 575 Volt / 3
PSI
45
Maximum Temperature (°F)
150-180
Manufacture
Cuda
Flow Rate / GPM
50
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
