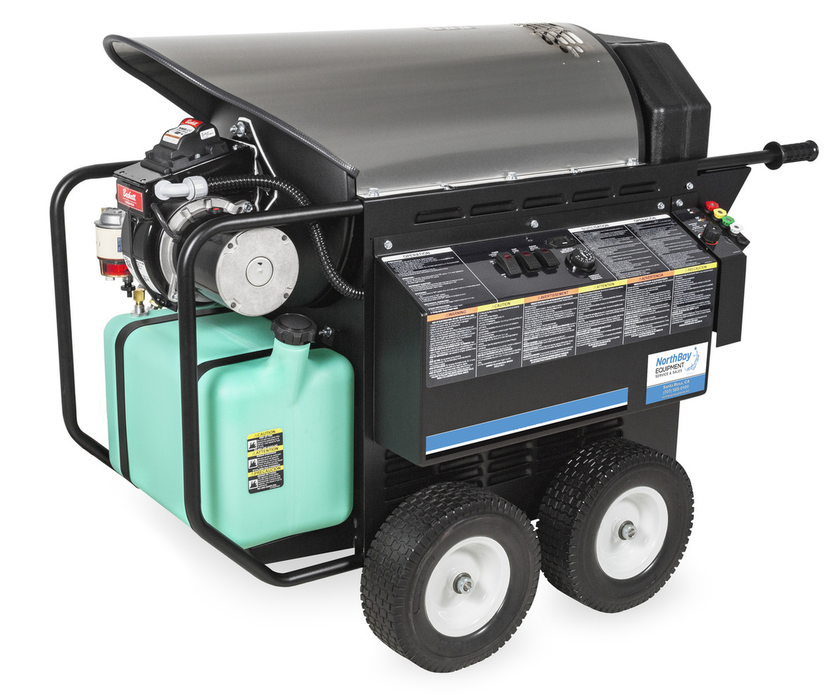

Mi-T-M Portable Electric Belt Drive – HHS Series
Tackle tough grease, grime and stubborn stains with the Portable HHB Series. This series features an open drip-proof motor and stainless-steel coil wrap heat exchanger.
Up to 4.8 GPM @ 3000 PSI
Pump:
·Adjustable high pressure detergent injector
·Factory preset unloader
Motor:
·Open drip-proof electric motor with manual thermal overload protection
·35-foot power cord
Frame:
·Powder coated steel frame assembly
·13-inch flat-free tires
Components:
·Stainless-steel coil wrap with horizontal schedule 80 pipe coil
·No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
·Racor fuel filter/water separator
·Adjustable thermostat
·Polyethylene float tank with inlet filter screen
·10-gallon polyethylene fuel tank
Miscellaneous:
·Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200ºF
Unit Includes:
·Quick connect nozzles - 0°, 15°, 25°, 40° and low pressure nozzle
·50-foot x 3/8-inch high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off
Limited Warranty:
·1 year electric motor
Certification:
·CSA Certified – US and Canada
