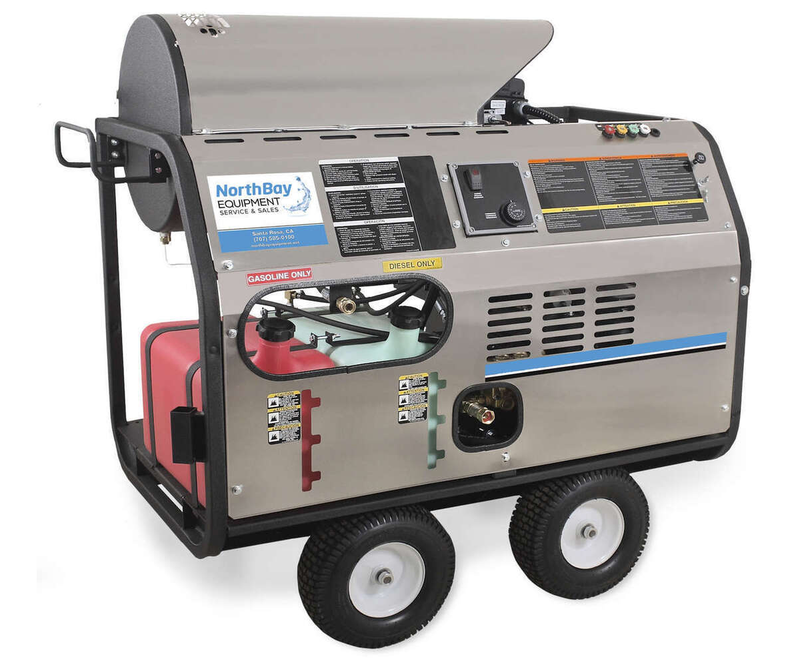

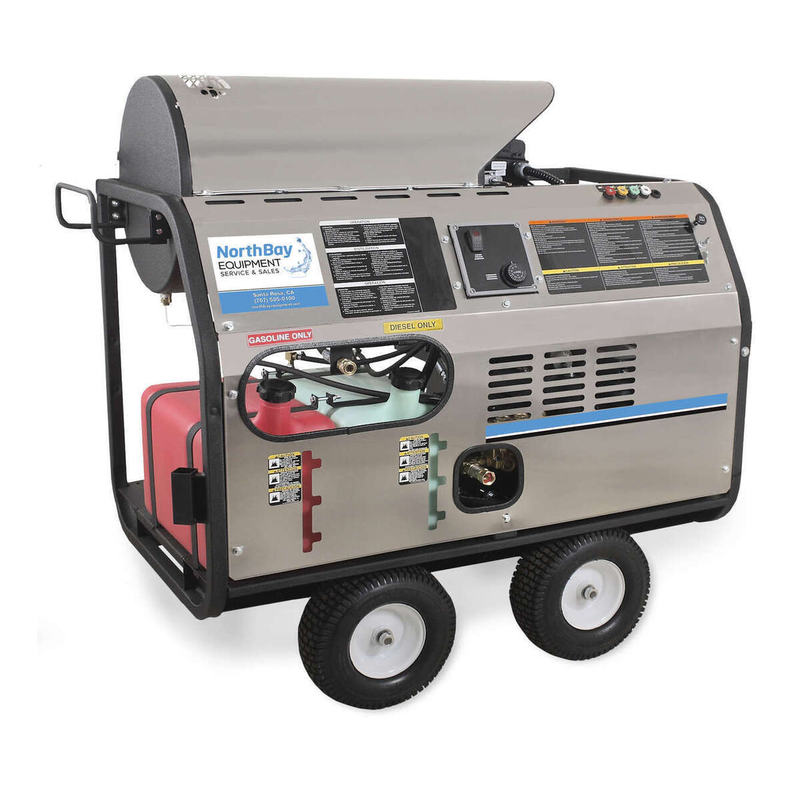

Mi-T-M Corporation Skid Gasoline/Diesel Belt Drive – HDB Series

This Mi-T-M HDB Series skid belt-drive pressure washer delivers 3.9 GPM at 3000 PSI with a Kohler diesel engine, electric start, and a 12-volt Beckett burner, battery not included.

Burner Fuel Type
Diesel
Engine Fuel Type
Gasoline, Diesel
Flow Rate / GPM
3.9
Gun Style
Insulated Trigger
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

Built with a powder coated steel frame, this series holds up on even the most demanding jobsites. It's ideal for cleaning heavy equipment and large surfaces.

3.9 GPM @ 3000 PSI

Pump:
·Factory preset unloader
·Low pressure detergent injector

Engine:
·Performance-proven Kohler diesel engine with electric start – battery not included

Frame:
·Powder coated steel square tube skid frame
·Stainless-steel removable front panel
·Optional wheel kit with locking tire brake, four tires and solid steel threaded axles

Components:
·12V Beckett burner – no need for a generator – battery not included
·Stainless-steel coil wrap heat exchanger with horizontal schedule 80 pipe coil
·No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
·Adjustable thermostat

Miscellaneous:
·Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes:
·Quick connect nozzles - 0°, 15°, 25° and 40°
·50-foot x 3/8-inch high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off

Limited Warranty:
·3 year engine

Certification:
·CSA Certified – US and Canada

Technical Data
Technical Specifications
Pump Drive
Belt Drive
PSI
3000
Maximum Temperature (°F)
200
Material / Finish
Insulated
Inside Diameter
3/8 In.
Hose Type
High Pressure
Hose Length (ft)
50
Gun Style
Insulated Trigger
Flow Rate / GPM
3.9
Engine Fuel Type
Gasoline, Diesel
Burner Fuel Type
Diesel
Wand Type
Dual Lance
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
