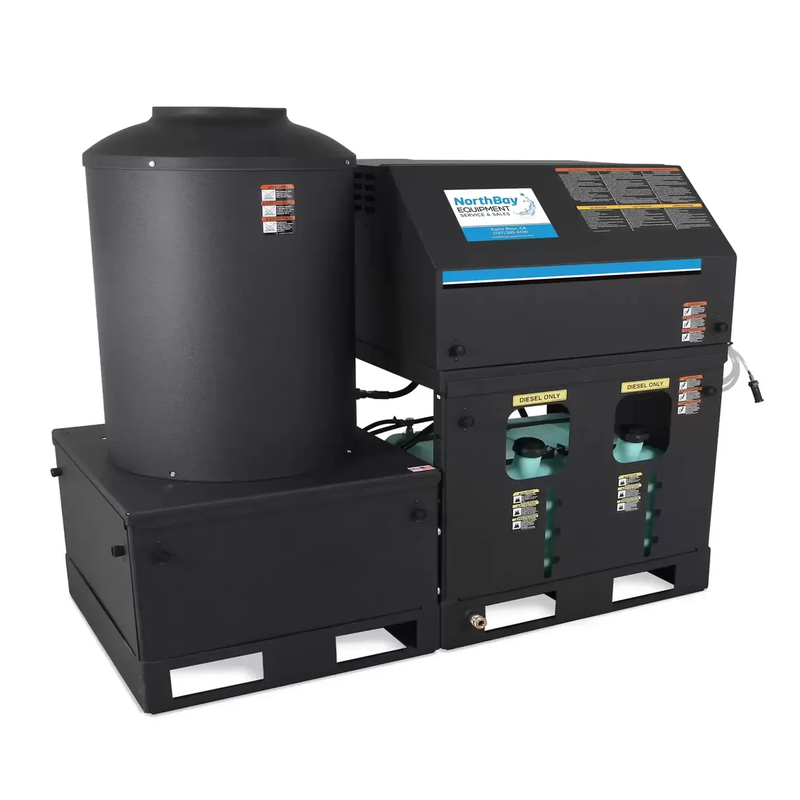

Mi-T-M Stationary Oil-Fired Belt Drive – HEO Series

This Mi-T-M HEO Series stationary oil-fired belt-drive pressure washer delivers up to 4.8 GPM at 3000 PSI with an open drip-proof motor and a five-pancake heat exchanger.

Burner Fuel Type
Diesel
Flow Rate / GPM
4.8
Gun Style
Insulated Trigger
Hose Length (ft)
50
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

Add this stationary, HEO Series to your wash bay to effortlessly clean vehicles, machinery or equipment. This series features removable side panels for quick and easy maintenance.

Up to 4.8 GPM @ 3000 PSI

Pump:
·Thermal relief valve
·Adjustable high pressure detergent injector
·Factory preset unloader

Motor:
·Open drip-proof electric motor with manual thermal overload protection

Frame:
·Powder coated steel frame with removable side panels

Components:
·1/2-inch schedule 80 pipe coil with 5-pancake heat exchanger
·10-inch draft diverter
·On/Off burner, pump and motor switches
·Pressure switch and over-pressure safety controls
·24V control system
·Polyethylene float tank (4-gallon with in-line screen filter)
·Adjustable thermostat

Miscellaneous:
·Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)
·Designed to run on an existing fuel tank (Optional fuel tanks available)

Unit Includes:
·Quick connect nozzles – 0°, 15°, 25°, 40° and fixed detergent nozzle
·50-foot x 3/8-inch steel wire-braided high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off

Limited Warranty:
·1 year electric motor

Certification:
·ETL Certified – US and Canada

Technical Data
Technical Specifications
Wire Braid
Steel wire
Voltage
208 Volt / 1, 208 Volt / 3, 230 Volt / 1, 230 Volt / 3, 460 Volt / 3
Pump Drive
Belt Drive
PSI
2000, 3000
Maximum Temperature (°F)
200
Material / Finish
Insulated
Inside Diameter
3/8 In.
Hose Type
High Pressure
Hose Length (ft)
50
Gun Style
Insulated Trigger
Flow Rate / GPM
4.8
Burner Fuel Type
Diesel
Wand Type
Dual Lance
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
