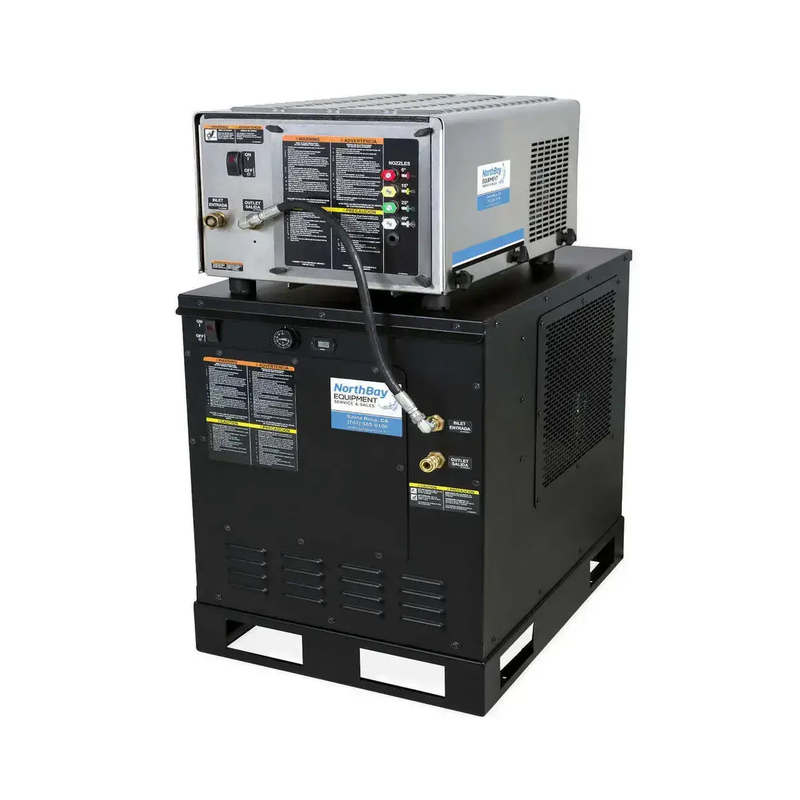

Mi-T-M Stationary All-Electric Belt Drive – DHA Series

This Mi-T-M DHA Series stationary all-electric belt-drive pressure washer is rated up to 3.9 at 3000 PSI and uses a patented heat exchanger with a 120F to 130F temperature rise.

Burner Fuel Type
Electric
Flow Rate / GPM
3.9
Gun Style
Trigger
Hose Length (ft)
50
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

The DHA Series is all-electric and features a patented heat exchanger design to provide consistent and efficient hot water on-demand.

Up to 3.9 @ 3000 PSI

Pump:
·Forged brass manifold
·Stainless-steel and brass unloader valve
·Forged brass manifold
·Thermal relief valve

Motor:
·Open drip-proof electric motor with manual thermal overload protection
·On/Off power switch

Frame:
·Stainless-steel base and frame with rubber isolators

Component:
·Time delay shutdown

Heat Exchanger:
·Patented cartridge design
·Used for consistent and efficient on-demand hot water
·120°F to 130°F temperature rise above in-take water, obtained within 3 to 5 minutes
·Adjustable thermostat
·On/Off power switch
·Powder coated steel frame
·Low maintenance, stainless-steel coils in aluminum casings for maximum efficiency
·Eliminates constant cleaning and heat loss

Unit Includes:
·Quick connect nozzles – 0°, 15°, 25° and 40°
·External downstream detergent injector with detergent nozzle
·50-foot x 3/8-inch steel wire-braided high pressure black hose
·Adjustable pressure insulated dual lance with trigger gun

Limited Warranty:
·1 year electric motor

Certification:
·ETL Certified – US and Canada

Technical Data
Technical Specifications
Wire Braid
Steel wire
Voltage
480 Volt / 3
Pump Drive
Belt Drive
PSI
2500, 3000
Material / Finish
Insulated
Inside Diameter
3/8 In.
Hose Type
High Pressure
Hose Length (ft)
50
Gun Style
Trigger
Flow Rate / GPM
3.9
Burner Fuel Type
Electric
Water Capatibility
Hot Water
Wand Type
Dual Lance
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
