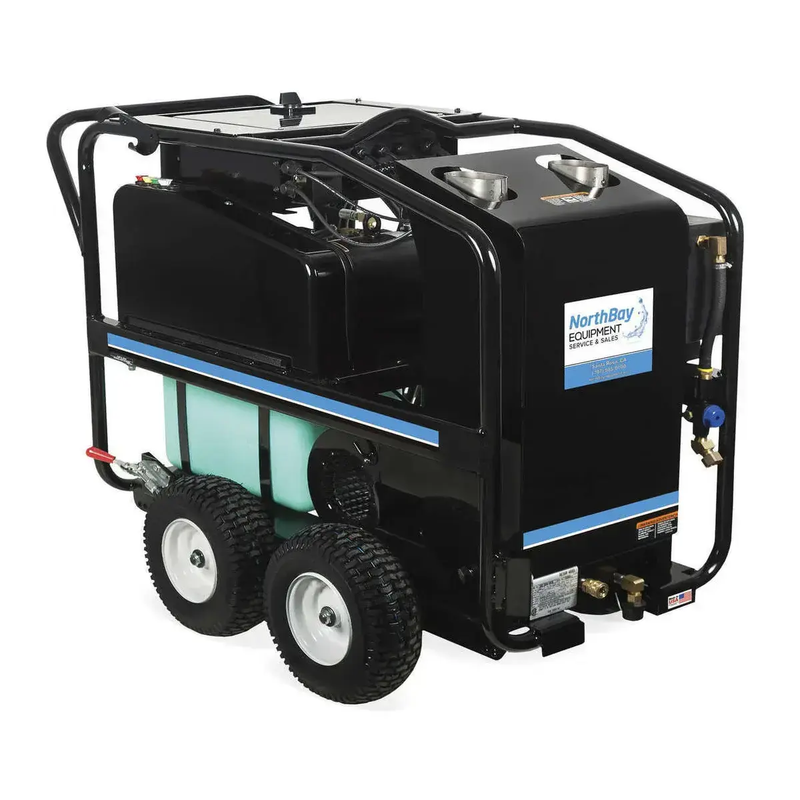

Mi-T-M Portable Electric Belt Drive – DHS Series

This Mi-T-M portable electric belt-drive DHS Series pressure washer delivers up to 3.3 GPM at 3500 PSI with a fan-cooled motor, a 35-foot cord, and a diesel or kerosene burner.

Burner Fuel Type
Diesel
Flow Rate / GPM
3.3
Gun Style
Insulated Trigger
Hose Length (ft)
50
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

Contractors rely on the DHS Series for its efficiency, reliability and longevity. It is heavy-duty and is great for melting away greasy residue and debris on industrial and commercial worksites.

Up to 3.3 GPM @ 3500 PSI

Pump:
·External bypass system protects from heat build-up
·Factory preset unloader
·Forged brass manifold
·Thermal relief valve
·High pressure detergent injector

Motor:
·Totally enclosed fan-cooled electric motor with manual thermal overload protection
·35-foot power cord

Frame:
·Reinforced powder coated steel tube frame with center balanced lift
·13-inch flat-free tires

Components:
·Energy-efficient top-fired heat exchanger
·No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous:
·Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F

Unit Includes:
·Quick connect nozzles – 0°, 15°, 25° and 40°
·50-foot x 3/8-inch steel wire-braided high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off

Limited Warranty:
·1 year electric motor

Certification:
·CSA Certified – US and Canada

Technical Data
Technical Specifications
Wire Braid
Steel wire
Voltage
230 Volt / 1, 230 Volt / 3, 460 Volt / 3
Pump Drive
Belt Drive
PSI
2500, 3000
Maximum Temperature (°F)
225
Material / Finish
Insulated
Inside Diameter
3/8 In.
Hose Type
High Pressure
Hose Length (ft)
50
Gun Style
Insulated Trigger
Flow Rate / GPM
3.3
Burner Fuel Type
Diesel
Wand Type
Dual Lance
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
