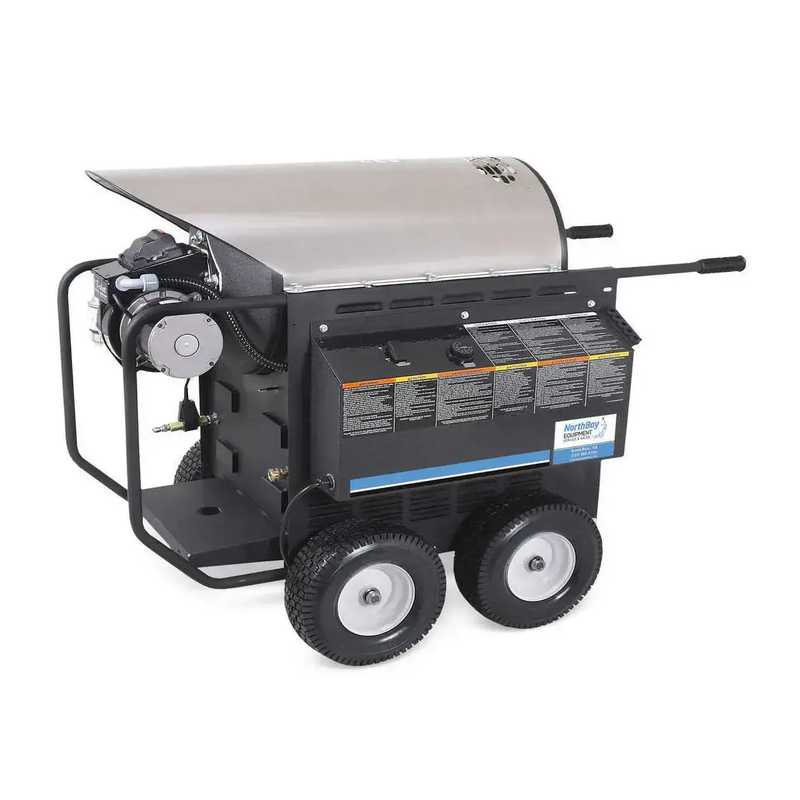

Mi-T-M Corporation Heater Module Diesel/Oil-Heated – HHM Series

This Mi-T-M HHM Series diesel or oil heater module adds hot water to a cold water pressure washer, with a 250F maximum outlet and a 150F rise at 4.0 GPM.

Burner Fuel Type
Diesel
Hose Length (ft)
12
Hose Type
Jumper
Inside Diameter
3/8 In.
Pricing & availability
Talk with an equipment specialist
Contact North Bay Equipment for current pricing, lead time, and configuration options.
Request pricing Call 707-585-0100
Expert Sales Support
Need Help Choosing the Right Equipment?
North Bay Equipment can help with product selection, specifications, availability, service, parts, and application questions.
Equipment Details
Product Overview

The HHM Series heater modules are the perfect addition to a cold water pressure washer you already have. Convert cold water into hot for added cleaning power.

Frame:
·Powder coated steel frame assembly
·Stainless-steel coil wrap
·13-inch flat-free tires

Components:
·Horizontal schedule 80 pipe coil heat exchanger
·No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)
·Adjustable thermostat
·35-foot power cord with GFCI

Miscellaneous:
·250°F maximum outlet temperature (150°F temperature rise at 4.0-GPM)

Unit Includes:
·12-foot x 3/8-inch jumper hose with quick connects to hook up to existing pressure washer

Certification:
·CSA Certified – US and Canada

Technical Data
Technical Specifications
Voltage
120 Volt / 1
PSI
3500
Maximum Temperature (°F)
250
Inside Diameter
3/8 In.
Hose Type
Jumper
Hose Length (ft)
12
Maximum Flow Rate (GPM)
4.0
Burner Fuel Type
Diesel
Water Capatibility
Hot Water
Specifications are subject to manufacturer changes. Confirm requirements with our team before ordering.
