Featuring a large capacity ASME tank, these air compressors are designed to perform. Mount one in a service truck and take it to the most demanding jobsite.

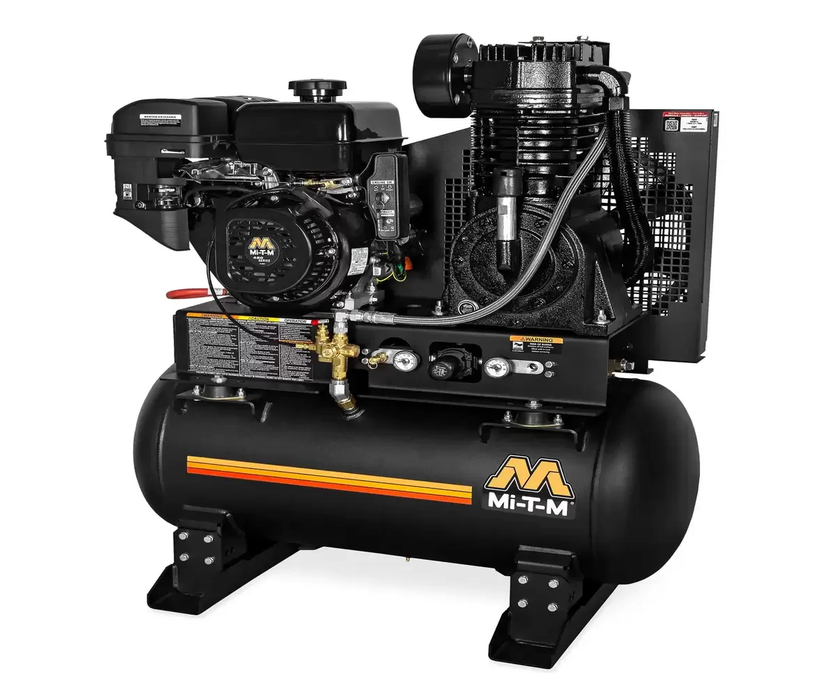

Model #AM2-SM09-30M | Stationary | Mi-T-M Engine
Compressor Pump: Cast iron compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader
Equipped with 150-PSI maximum rated regulator.
Specifications
CFM @ PSI: 17.2 @ 175
Displacement/ Engine: 300cc Mi-T-M OHV
Tank Size: 30-gallon
Engine Idle Control: Cable Throttle
Weights & Dimensions
Net Weight: 364.00 lbs.
Shipping Weight: 434.00 lbs.
Length: 40.50 in.
Width: 17.50 in.
Height: 44.50 in.
